JBG FIVE AXIS MEDIUM SERVODRIVEN TRAVERSE ROBOT SERIES

■ All-axis is driven by servo motor, can realizes products stacking up on any points inside mould, as well as at X1/X2/Y2/Z directions. Can cut the runner by scissors driven and inset or embed the accessory by cylinder.



■ Crosswise type uses aluminium alloy double-rails design which applies for patent. Lighter weight and higher bending sterngth makes longlife.



■ Back-installed electric cabinet design improves the whole shock resistance and more stable, reduces the electronic fault.



■ The traverse guide rail installs manual lubrication system, more convenient to maintain.



■ Wheel gear lateral plate struction and constanted overturn torque, makes tools works well. Cylinder's of lifetime is longer because of lateral cylinder piston rod no skewing.



0
Views: 1,415
  • OVERALL DIMESIONS

    Model

    Unit

    JBG-800PR

    JBG-900PR

    JBG-1000PR

    Type

    /

    Telecopic type

    l.lM.range

    ton

    ≤250T

    250T-330T

    300T-380T

    Vertical stroke

    mm

    P:800/R:850

    P:900/R:950

    P:1000/R:1050

    Crosswise stroke

    mm

    P:410/R:410

    P:580/R:580

    P:580/R:580

    Traverse stroke

    mm

    1400

    1600

    1800

    Gripper rotiation angle

    90°

    Max load(with tool)

    kg

    3

    3

    5

    Minimum take-out time

    sec

    1.5

    Dry cycle time(without tool)

    sec

    6

    Drive system

    /

    X1,X2,Y1,Y2,Z-Servo motor

    Working air pressure

    kgf/cm2

    4.5-6.5

    Air consumption

    NL/cycle

    P:10/PR:12

    Power consumption

    KVA

    2.0

    Power

    AC

    220V/50HZ

    Net weight

    kg

    310

    330

    380

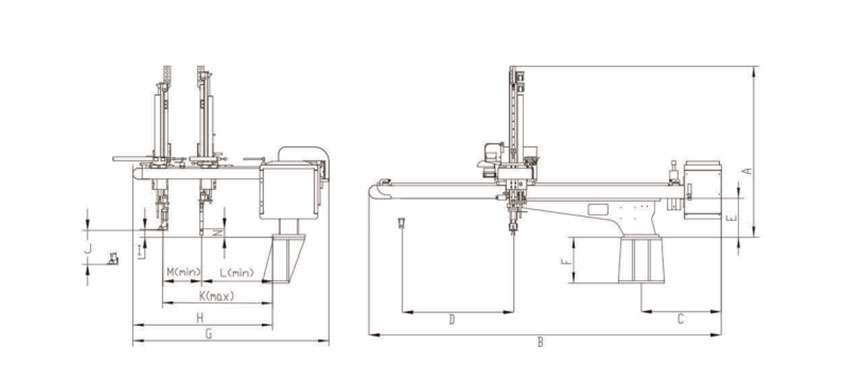

    LAYOUT

    OVERALL DIMESIONS

    Model

    A

    B

    C

    D

    E

    F

    G

    H

    I

    J

    K

    L

    M

    N

    JBG-800PR

    1200

    2450

    700

    1400

    300

    250

    1350

    900

    66

    800

    900

    660

    140

    150

    /

    JBG-900PR

    1260

    2690

    1600

    300

    1530

    1075

    835

    JBG-1000PR

    1300

    2870

    1800

    350

    1530

    1075

    1000

    835
