JBG FIVE AXIS MEDIUM SERVO DRIVEN TRAVERSE ROBOT SERIES

■ All-axis is drivenby servo motor, can realizes products stacking up on any points inside mould, as well as at X1/X2/Y1/Y2/Z directions. Can cut the runner by scissors driven and inset or embed the accessory by cylinder.



■ Crosswise type uses aluminium alloy double-rails design which applies for patent. Lighter weight and higher bending sterngth makes longlife.



■ Back-installed electric cabinet design improves the whole shock resistance and more stable, reduces the electronic fault.



■ The traverse guide rail installs manual lubrication system, more convenient to maintain.



■ Wheel gear lateral plate struction and constanted overturn torque, makes tools works well. Cylinder s of lifetime is longer because of lateral cylinder piston rod no skewing.



0
Views: 148
Inquiry
  • OVERALL DIMESIONS

    Model

    Unit

    JBG-1100PR

    JBG-1200PR

    JBG-1300PR

    Type

    /

    Telecopic type

    l.lM.range

    ton

    380-450T

    500T-700T

    700T-800T

    Vertical stroke

    mm

    P:1100/R:1150

    P:1200/R:1250

    P:1300/R:1350

    Crosswise stroke

    mm

    P:770/R:770

    P:770/R:770

    P:770/R:770

    Traverse stroke

    mm

    1800

    2000

    2200

    Gripper rotiation angle

    90°

    Max load(with tool)

    kg

    10

    10

    10

    Minimum take-out time

    sec

    2

    2

    2

    Dry cycle time(without tool)

    sec

    8

    9

    10

    Drive system

    /

    X1,X2,Y1,Y2,Z-Servo motor

    Working air pressure

    kgf/cm2

    4.5-6.5

    Air consumption

    NL/cycle

    P:20/PR:25

    Power consumption

    KVA

    2.65

    Power

    AC

    220V/50HZ

    Net weight

    kg

    420

    460

    480

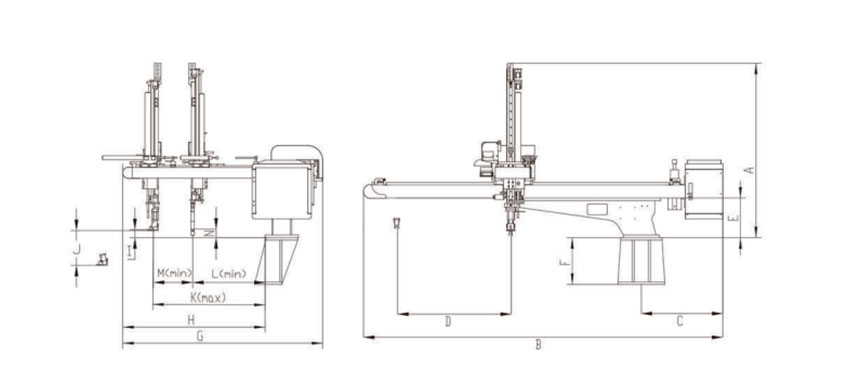

    LAYOUT

    OVERALL DIMESIONS

    Model

    A

    B

    C

    D

    E

    F

    G

    H

    I

    J

    K

    L

    M

    N

    JBG-1100PR

    1720

    3040

    700

    1800

    400

    300

    1800

    1440

    130

    1100

    1040

    155

    130

    /

    JBG-1200PR

    1B20

    3270

    2000

    350

    1800

    1440

    130

    1300

    1040

    155

    JBG-1300PR

    1980

    3490

    2200

    400

    2020

    1630

    130

    1500

    1040

    155
