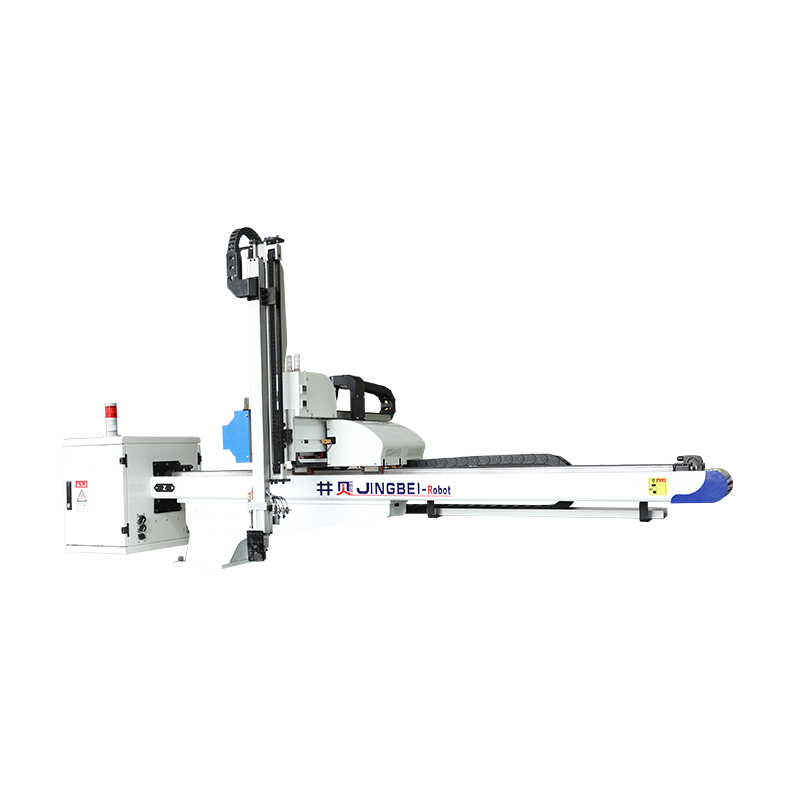

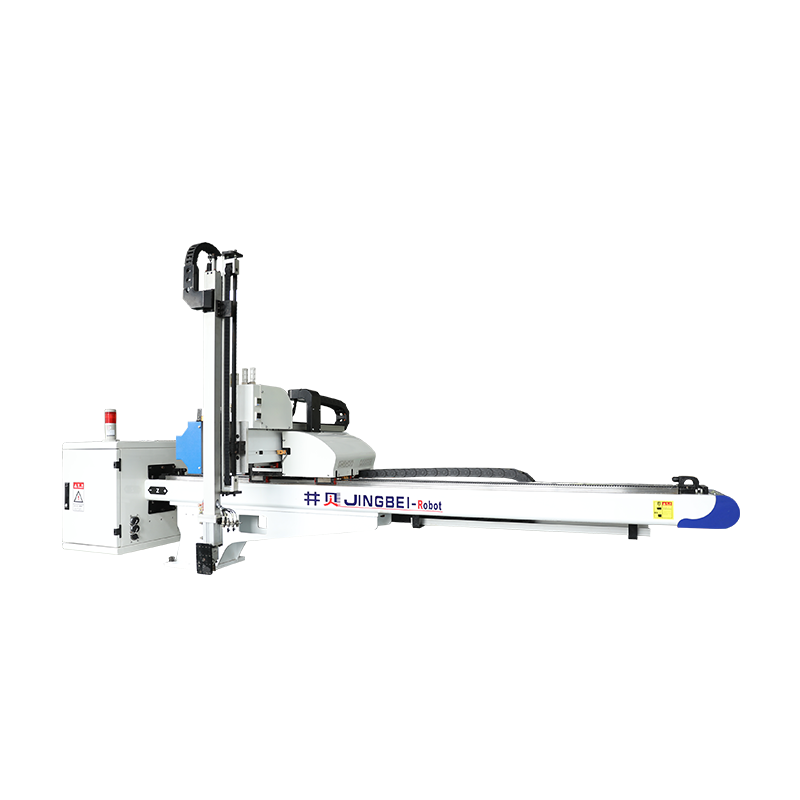

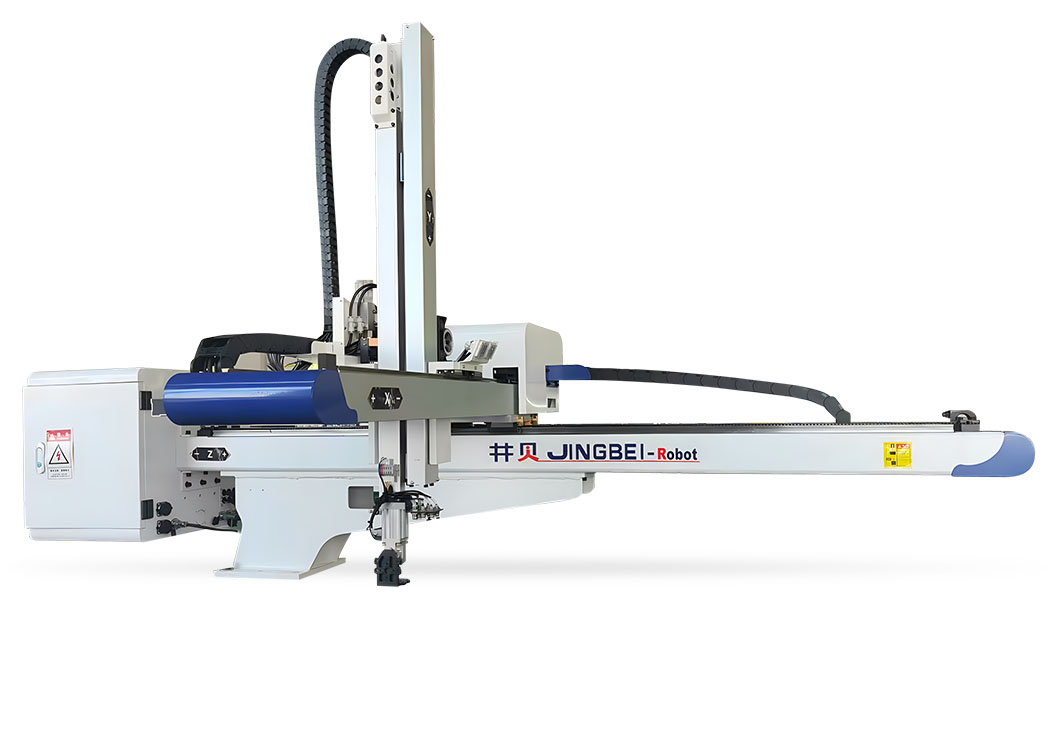

JBF THREE AXIS SERVO OPEN TYPE HEIGH SPEED ROBOT SERIES

JBF THREE AXIS SERVO OPEN TYPE HEIGH SPEED ROBOT SERIES

■ Crosswise type adopts open design, no frame. X\YVZ axis is driven by secvo motor, also can add B or C axis; Meanwhile, can stack up at any points at X Y Z directions. Can cut the runner by scissors driven and inset or embed the accessory by cylinder.



■ The traverse guide rail installs manual lubrication system, more convenient to maintain.



■ Back-installed electric cabinet design improves the whole shock resistance and more stable, reduces the electronic fault.



■ Wheel gear lateral plate struction and constanted overturn torque, makes tools works well. Cylinder's of lifetime is longer because of  lateral cylinder piston rod no skewing.



■ In-mold removal time 0.8s, ram open structure design, suitable for the removal of thin-walled products of 300T-500T high speed injection molding machine. Such as lunch box produchts.



0
Views: 380
Inquiry
  • OVERALL DIMESIONS

    Model

    Unit

    JBHH-900P JBHH-1000P JBHH-1100P JBHH-1200P

    Type

    /

    Telecopic type

    l.lM.range

    ton

    ≤250T

    250T-330T

    300T-380T

    380T-450T

    Vertical stroke

    mm

    900

    1000

    1100

    1200

    Crosswise stroke

    mm

    600

    600

    600

    700

    Traverse stroke

    mm

    1600

    1600

    1800

    2000

    Gripper rotiation angle

    90°

    Max load(with tool)

    kg

    4

    Minimum take-out time

    sec

    0.8

    Dry cycle time(without tool)

    sec

    2.8

    2.8

    3.2 3.5

    Drive system

    /

    X/Y/Z-Servo motor

    Working air pressure

    kgf/cm2

    4-6.5

    Air consumption

    NL/cycle

    25

    Power consumption

    KVA

    1.9

    Power

    AC

    220V/50HZ

    Net weight

    kg

    260

    280

    280

    290

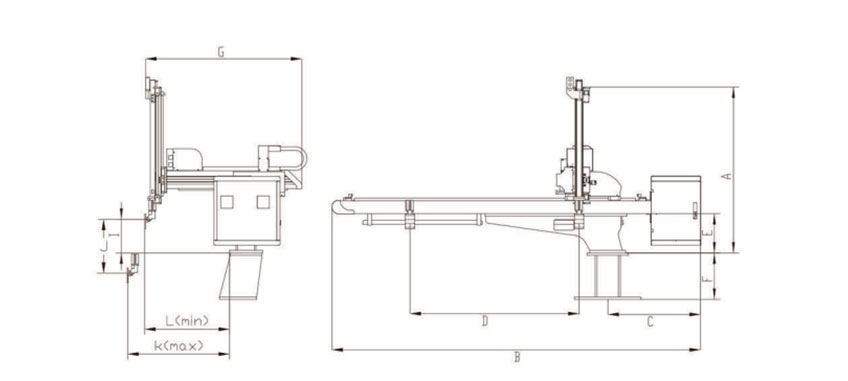

    LAYOUT

    OVERALL DIMESIONS

    Model

    A

    B

    C

    D

    E

    F

    G

    H

    I

    J

    K

    L

    JBHH-900P-L1600

    1270

    2800

    700

    1600

    400

    /

    1120

    /

    225

    1200

    700

    225

    JBHH-1000P-L1600

    1320

    1600

    1120

    225

    1200

    700

    JBHH-1100P-L1800

    1370

    1800

    1120

    225

    1200

    700

    JBHH-1200P-L2000

    1420

    2000

    1120

    225

    1200

    700
