JBF THREE AXIS SERVO DRIVEN TRAVERSE ROBOT SERIES

 ■ X\Y\Z axis is driven by servo motor, Can realizes products stacking up on any points at Y\Z directions. Can cut the runner by scissors driven and inset or embed the accessory by cylinder.



■ Crosswise type uses aluminium alloy double-rails design which applies for patent.Lighter weight and higher bending strength makes longlife.



■ The traverse guide rail installs manual lubrication system, more convenient to maintain.



■ Back-installed electric cabinet design improves the whole shock resistance and more stable, reduces the electronic fault.



■ Wheel gear lateral plate struction and constanted overturn torque,makes tools works well. Cylinder's of lifetime is longer because of lateral cylinder piston rod no skewing.



0
Views: 86
Inquiry
  • OVERALL DIMESIONS

    (Model

    Unit

    JBF-800P(R)

    JBF-900P(R)

    JBF-1000P(R)

    Type

    /

    Telecopic type

    l.lM.range

    ton

    ≤250T

    250T-330T

    300T-380T

    Vertical stroke

    mm

    P:800/R:850

    P:900/R:950

    P:1000/R:1050

    Crosswise stroke

    mm

    P:490/PR:400. 120

    P:490/PR:570. 120

    P:610/PR:570, 120

    Traverse stroke

    mm

    1400

    1600

    1800

    Gripper rotation angle

    90°

    Max load(with tool)

    kg

    3

    4

    5

    Minimum take-out time

    sec

    1.5

    Dry cycle time(without tool)

    sec

    5

    Drive system

    /

    X1, Y1, Z-Servo motor; X2, Y2-Cylinder

    Working air pressure

    kgf/cm2

    4.5-65

    Air consumption

    NL/cycle

    P:12/PR:14

    Power consumption

    KVA

    1.2

    Power

    AC

    220V/50HZ

    Net weight

    kg

    P:260/R:300

    P:280/PR:320

    P:300/PR:360

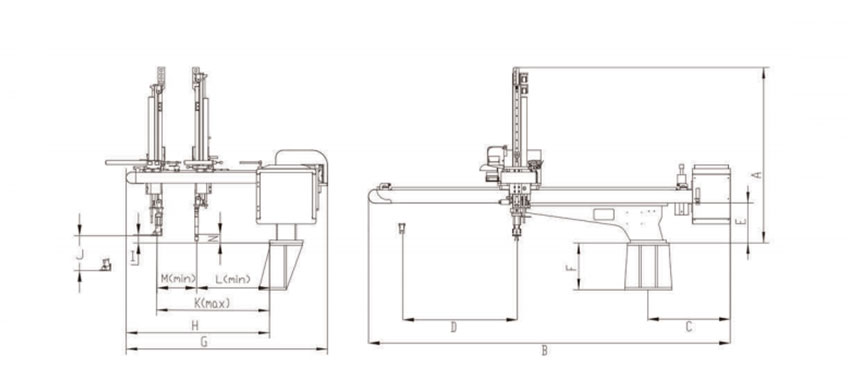

    LAYOUT

     OVERALL DIMENSIONS

    Model

    A

    B

    C

    D

    E

    F

    G

    H

    I

    J

    K

    L

    M

    N

    JBF-800P

    1200

    2380

    700

    1400

    300

    300

    300

    350

    1230

    780

    /

    800

    690

    /

    /

    /

    JBF-800PR

    1350

    900

    /

    690

    140

    135

    /

    JBF-900P

    1260

    2620

    1600

    1230

    780

    /

    900

    690

    /

    /

    /

    JBF-900PR

    1530

    1075

    /

    820

    140

    135

    /

    JBF-1000P

    1300

    2800

    1800

    1350

    900

    /

    1000

    815

    /

    /

    /

    JBF-1000PR

    1530

    1075

    /

    835

    140

    135

    /
