JBF THREE AXIS MEDIUM SERVO DRIVEN TRAVERSE ROBOT SERIES

■ X\Y\Z axis is driven by servo motor. Can realizes products stacking up on any points at Y\Z directions. Can cut the runner by scissors driven and inset or embed the accessory by cylinder.



■ The traverse guide rail installs manual lubrication system, more convenient to maintain.



■ Back-installed electric cabinet design improves the whole shock resistance and more stable, reduces the electronic fault.



■ Wheel gear lateral plate struction and constanted overturn torque, makes tools works well. Cylinder's of lifetime is longer because of lateral cylinder piston rod no skewing.



0
Views: 1,357
  • OVERALL DIMESIONS

    Model

    Unit

    JBF-1100P

    JBF-1200P

    JBF-1300P

    Type

    /

    Telecopic type

    l.lM.range

    ton

    380T-450T

    500T-700T

    700T-800T

    Vertical stroke

    mm

    1100

    1200

    1300

    Crosswise stroke

    mm

    930

    930

    930

    Traverse stroke

    mm

    1800

    2000

    2200

    Gripper rotiation angle

    90°

    Max load(with tool)

    kg

    10

    12

    15

    Minimum take-out time

    sec

    2

    2.5

    3

    Dry cycle time(without tool)

    sec

    10

    10

    12

    Drive system

    /

    X,Y, Z-Servo motor

    Working air pressure

    kgf/cm2

    4.5-6.5

    Air consumption

    NL/cycle

    12

    Power consumption

    KVA

    1.55

    Power

    AC

    220V/50HZ

    Net weight

    kg

    360

    380

    400

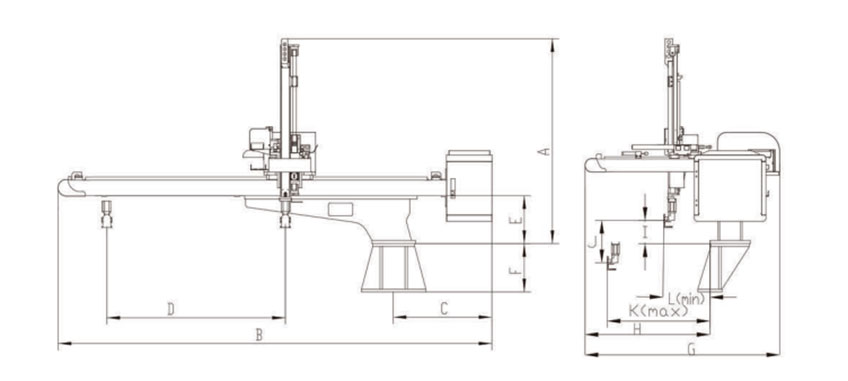

    LAYOUT

    OVERALL DIMESIONS

    Model

    A

    B

    C

    D

    E

    F

    G

    I

    J

    K

    L

    JBF-1100P

    1720

    2970



    700



    1800



    320



    300

    1400

    170

    1100

    1040

    155

    JBF-1200P

    1770

    3200

    2000

    350

    1400

    170

    1200

    1040

    155

    JBF-1300P

    1980

    3420

    2200

    400

    1550

    170

    1300

    1040

    155
