JBF THREE AXIS HEIGH SPEED SERVO SERIES

 Inside mould least take-out time is 0.4s and dry cycle time is 2.6* widely used in thin-wall box and disposable cutlery industry.



■ X\Y\Z axis is driven by servo motor, can realizes products stacking up on any points inside mould, as well as at X Y Z directions. Can cut the runner by scissors driven and inset or embed the accessory by cylinder.



■ Crosswise type uses aluminium alloy double-rails design which applies for patent. Lighter weight and higher bending sterngth makes longlife.



■ Back-installed electric cabinet design improves the whole shock resistance and more stable, reduces the electronic fault.



■ The traverse guide rail installs manual lubrication system, more convenient to maintain.



■ Wheel gear lateral plate struction and constanted overturn torque, makes tools works well. Cylinder s of Jifetime is longer because of lateral cylinder piston rod no skewing.



0
Views: 1,300
  • OVERALL DIMESIONS

    Model

    Unit JBF-800P JBF-9000P JBF-1000P JBF-1100P

    Type

    / Telecopic type

    l.lM.range

    ton ≤250T 250T-330T 300T-380T 380T-450T

    Vertical stroke

    mm

    800

    900

    1000

    1100

    Crosswise stroke

    mm

    490

    490

    610

    610

    Traverse stroke

    mm

    1400

    1600

    1800

    2000

    Gripper rotiation angle

    90

    Max load(with tool)

    kg

    3

    Minimum take-out time

    sec

    1

    Dry cycle time(without tool)

    sec

    2.8

    2.8

    3

    3

    Drive system

    /

    X/Y/Z-Serv0 motor

    Working air pressure

    kgf/cm2

    4.5-6.5

    Air consumption

    NL/cycle

    12

    Power consumption

    KVA

    1.55

    Power

    AC

    220V/50HZ

    Net weight

    kg

    260

    280

    300

    360

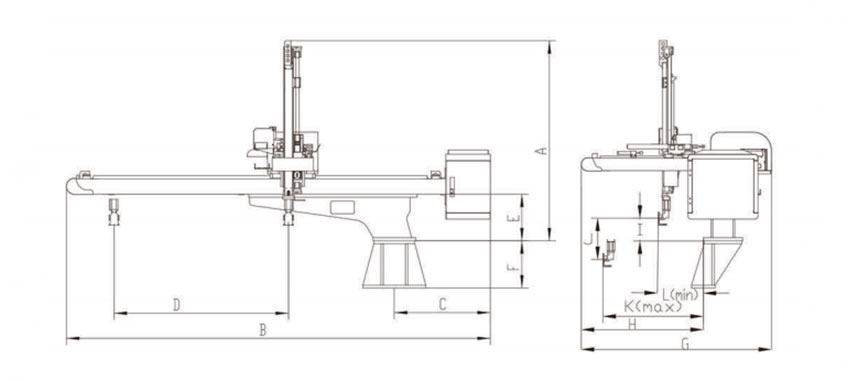

    LAYOUT

    OVERALL DIMESIONS

    Model

    A

    B

    C

    D

    E

    F

    G

    H

    I

    J

    K

    L

    JBFH-800P

    1200

    2380



    700



    1400



    300



    250

    1230

    780

    110

    800

    690



    140



    JBFH-900P

    1260

    2620

    1600

    300

    1230

    780

    110

    900

    690

    JBFH-1000P

    1300

    2800

    1800

    350

    1350

    900

    110

    1000

    815

    JBFH-1100P

    1360

    2970

    700

    2000

    320

    350

    1400

    900

    110

    1100

    1040

    155
