JBE TWO AXIS MEDIUM SERVO DRIVEN TRAVERSE ROBOT SERIES

Y axis is driven by servo motor. Can realizes products stacking up on any points at Y\Z directions. Can cut the runner by scissors driven and inset or embed the accessory by cylinder.



The traverse guide rail installs manual lubrication system, more convenient to maintain.



Back-installed electric cabinet design improves the whole shock resistance and more stable, reduces the electronic fault.



Wheel gear lateral plate struction and constanted overturn torque, makes tools works well. Cylinder's of lifetime is longer because of lateral cylinder piston rod no skewing.



0
Views: 104
Inquiry
  • OVERALL DIMESIONS

    Model

    Unit

    JBE-1100P

    JBE-1200P

    JBE-1300P

    Type

    /

    Telecopic type

    l.lM.range

    ton

    380T-450T

    500T-700T

    700T-800T

    Vertical stroke

    mm

    1100

    1200

    1300

    Crosswise stroke

    mm

    400

    400

    400

    Traverse stroke

    mm

    1800

    2000

    2200

    Gripper rotation angle

    90°

    Max load(with tool)

    kg

    10

    12

    13

    Minimum take-out time

    sec

    2

    2.5

    2.7

    Dry cycle time(without tool)

    sec

    10

    11

    12

    Drive system

    /

    Y,Z-Servo motor;X-Cylinder

    Working air pressure

    kgf/cm2

    4.5-65

    Air consumption

    NL/cycle

    13

    Power consumption

    KVA

    1.15

    Power

    AC

    220V/50HZ

    Net weight

    kg

    500

    530

    560

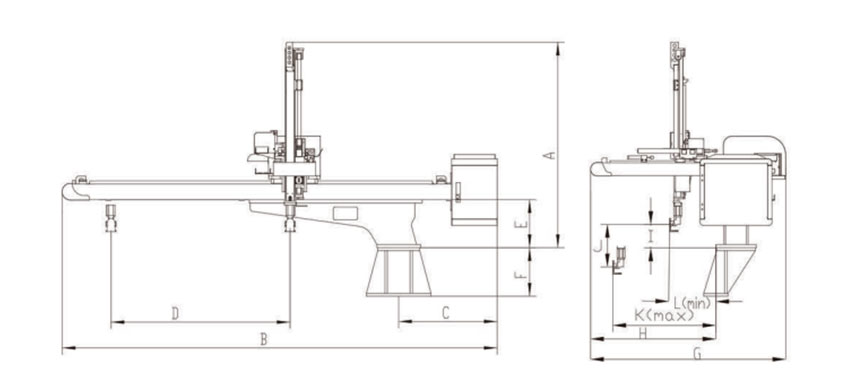

    LAYOUT

    OVERALL DIMENSIONS

    Model

    A

    B

    C

    D

    E

    F

    G

    H

    I

    J

    K

    L

    JBE-1100P

    1720

    2870



    1800



    300

    2020

    1440

    130

    1100

    1030

    155

    JBE-1200P

    1720

    3100

    650

    2000

    320

    350

    2020

    1440

    130

    1200

    1030

    155

    JBE-1300P

    1820

    3320



    2200



    400

    2020

    1440

    130

    1300

    1030

    155
