JBD SINGLE AXIS SERVO DRIVEN TRAVERSE ROBOT SERIES

Crosswise type uses aluminium alloy double-rails design which applies for patent. Lighter weight and higher bending sterngth makes longlife.



Back installed electric cabinet design improves the whole shock resistance and more stable, reduces the electronic fault.



Wheel gear lateral plate struction and constanted overturn torque, makes tools works well. Cylinder's of lifetime is longer because of lateral cylinder piston rod no skewing.



0
Views: 1,991
  • OVERALL DIMESIONS

    Model

    Unit

    JBD-800P(R)

    JBD-900P(R)

    JBD-1000P(R)

    Type

    /

    Telecopic type

    l.lM.range

    ton

    ≤250T

    250T-330T

    300T-380T

    Vertical stroke

    mm

    P:800/R:850

    P:900/R:950

    P:1000/R:1050

    Crosswise stroke

    mm

    P:200/PR:120

    P:300/PR:120

    P:300/PR:120

    Traverse stroke

    mm

    1400

    1600

    1800

    Gripper rotation angle

    90°

    Max load(with tool)

    kg

    3

    3

    5

    Minimum take-out time

    sec

    2.5

    Dry cycle time(without tool}

    sec

    6

    Drive system

    /

    2-Servo motor:X,Y-Cylinder

    Working air pressure

    kgf/cm2

    4.5-6.5

    Air consumption

    NL/cycle

    P:13/PR:16

    P:14/PR:18

    P:15/PR:19

    Power consumption

    KVA

    0.4

    Power

    AC

    220V/50HZ

    Net weight

    kg

    P:260/PR:300

    P:280/PR:320

    P:300/PR:360

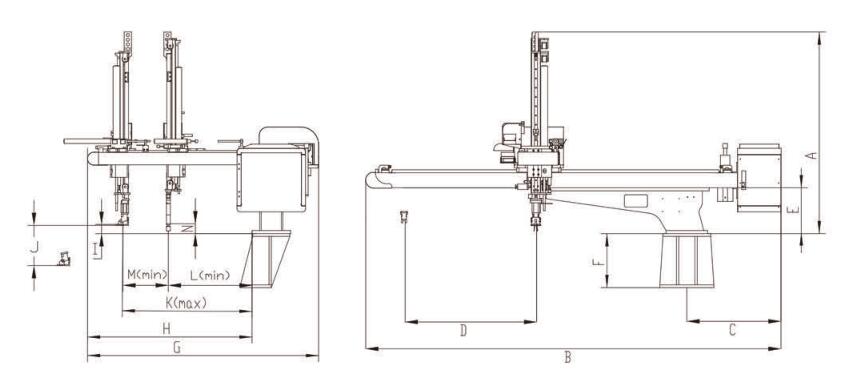

    LAYOUT

    OVERALL DIMESIONS
    Model A B C D E F G H I J K L M N
    JBD-800P 1200 2280 650 1400 300

    250

    300

    350

    1350 900 / 800 660 / / /
    JBD-800PR / 140 135 /
    JBD-900P 1260 2520 1600 1350 1075 / 900 820 / / /
    JBD-900PR / 140 135 /
    JBD-1000P 1300 2700 1800 1530 1075 / 1000 835 / / /
    JBD-1000PR / 140 135 /
